Coil Kit Take-Off Guide

Manual 2-Way Brass Coil Hookup Kits (1/2″ – 2″)
Manual 3-Way Brass Coil Hookup Kits (1/2″ – 2″)
Manual Heat Pump Hose Kits (1/2″ – 2″)

Note: The Model HSS stainless steel braided hoses can be added to any of the 1/2″ to 2″ kits.


Manual 2-Way Brass Coil Hookup Kits (1/2″ – 2″)


These manual 2-way balancing kits are a packaged and partially preassembled grouping of components required to complete installation of a terminal unit.”

Submittals

V2I Kit

Image title

The V2I kit consists of (1) Model CBV combination ball valve with venturi, (1) Model IVY integral full-port ball valve with wye-strainer and (1) Model AU accessory union.

Click Here

V2B Kit

Image title

The V2B kit contains (1) Model CBV combination ball valve with venturi, (1) Model IBU integral full-port ball valve with union and (1) Model AU accessory union.

Click Here

B2I Kit

Image title

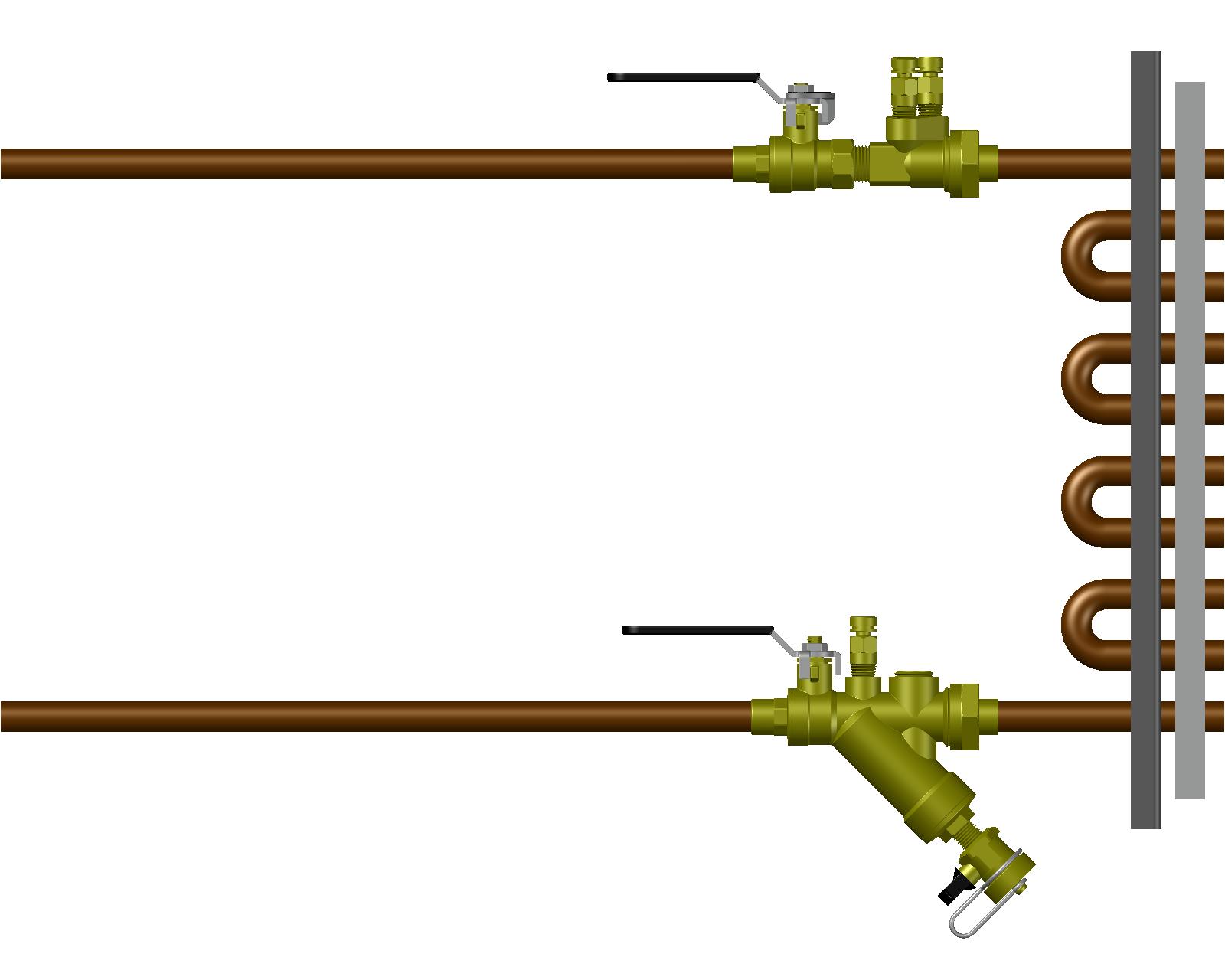

The B2I kit consists of (1) Model IBU integral full-port ball valve with union, (1) Model IVY integral full-port ball valve with wye-strainer and (1) Model AU accessory union.

Click Here

VNI Kit

Image title

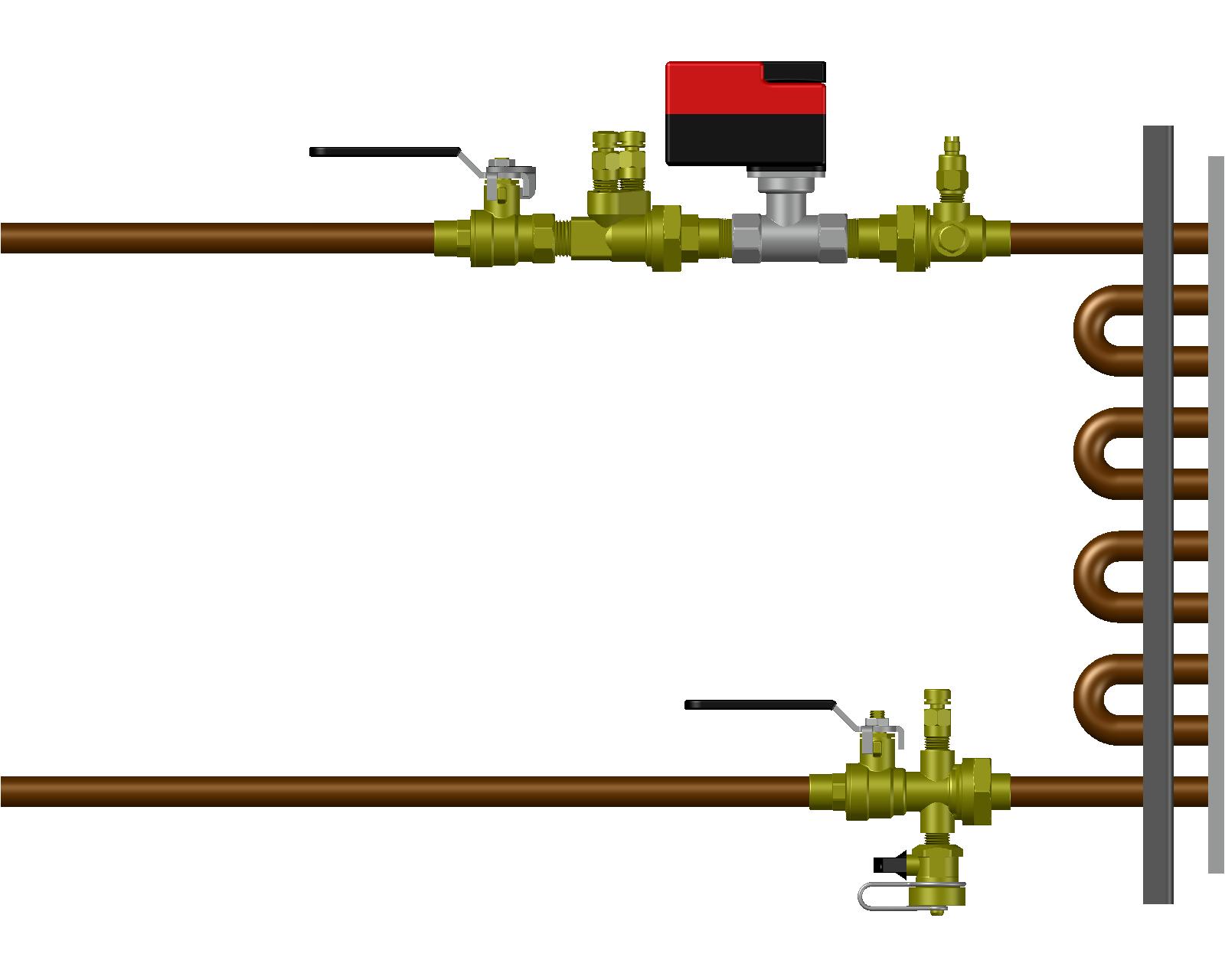

The VNI kit consists of (1) Model CBV combination ball valve with venturi and (1) Model IVY integral full-port ball valve with wye-strainer.

Click Here

VNB Kit

Image title

The VNB kit consists of (1) Model CBV combination ball valve with venturi and (1) Model IBU integral full-port ball valve with union.

Click Here

BNB Kit

Image title

The BNB kit consists of (2) Model IBU integral full-port ball valves with union.

Click Here

V2IH Kit

Image title

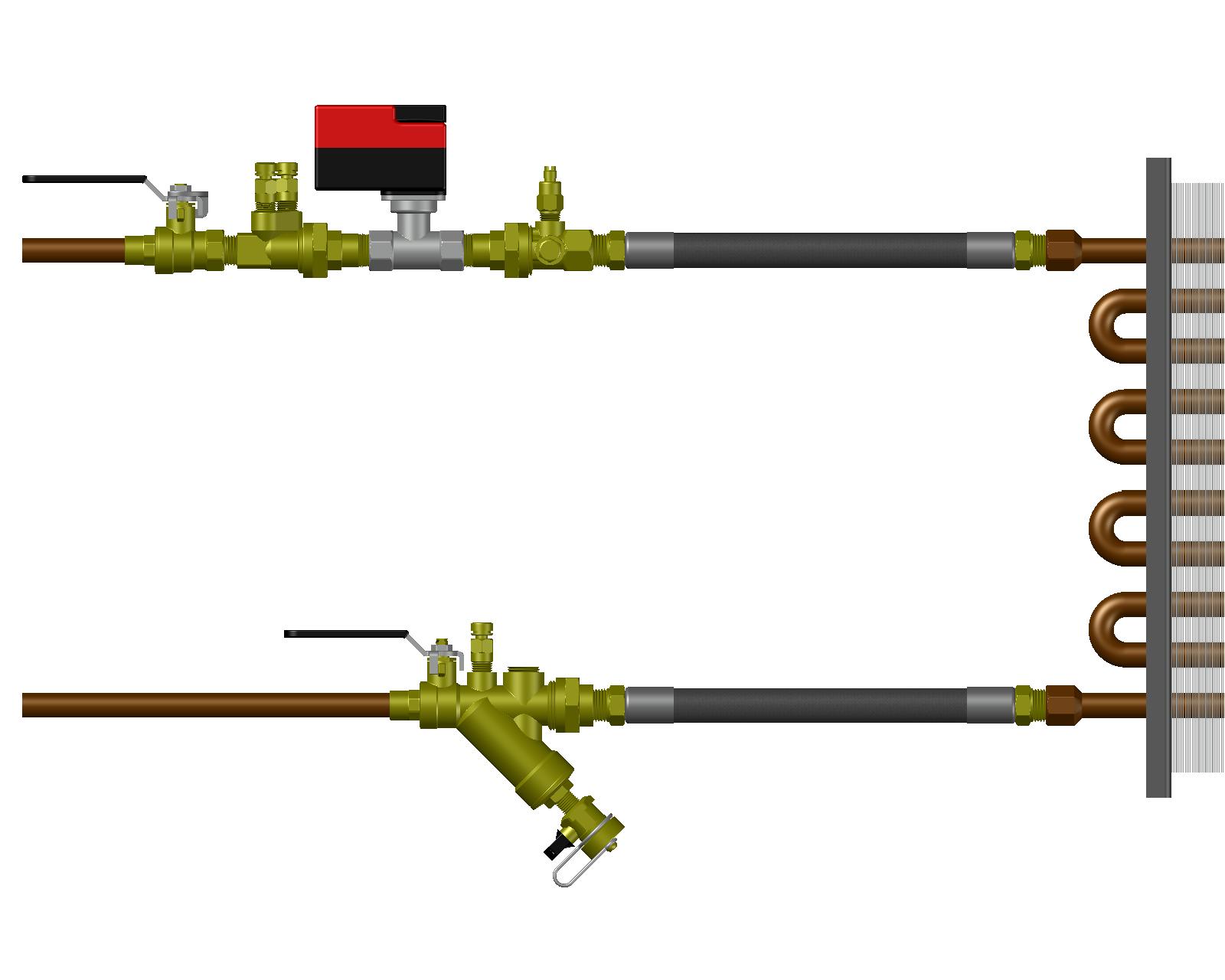

The V2IH kit consists of (1) Model CBV combination ball valve with venturi, (1) Model IVY integral full-port ball valve with wye-strainer, (1) Model AU accessory union and (2) Model HSS stainless steel braided hoses.

Click Here

V2BH Kit

Image title

The V2BH kit contains (1) Model CBV combination ball valve with venturi, (1) Model IBU integral full-port ball valve with union, (1) Model AU accessory union and (2) Model HSS stainless steel braided hoses.

Click Here

V2S Kit

Image title

The V2S kit consists of (1) Model CBV combination ball valve with venturi, (1) Model IVS integral full-port ball valve with wye-strainer and (1) Model AU accessory union.

Click Here

B2IH Kit

Image title

The B2IH kit consists of (1) Model IBU integral full-port ball valve with union, (1) Model IVY integral full-port ball valve with wye-strainer, (1) Model AU accessory union and (2) Model HSS stainless steel braided hoses.

Click Here

VNIH Kit

Image title

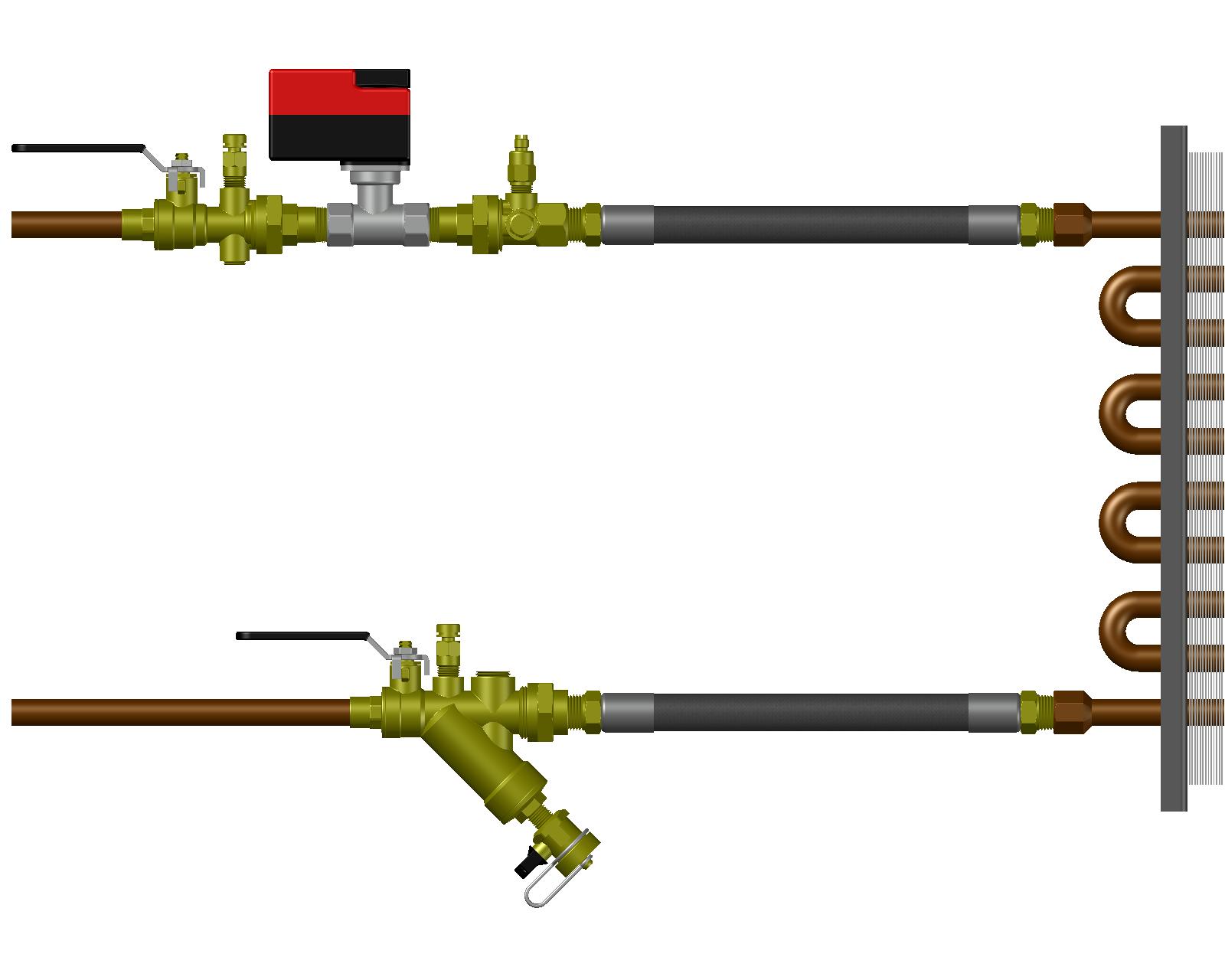

The VNIH kit consists of (1) Model CBV combination ball valve with venturi, (1) Model IVY integral full-port ball valve with wye-strainer and (2) Model HSS stainless steel braided hoses.

Click Here

VNBH Kit

Image title

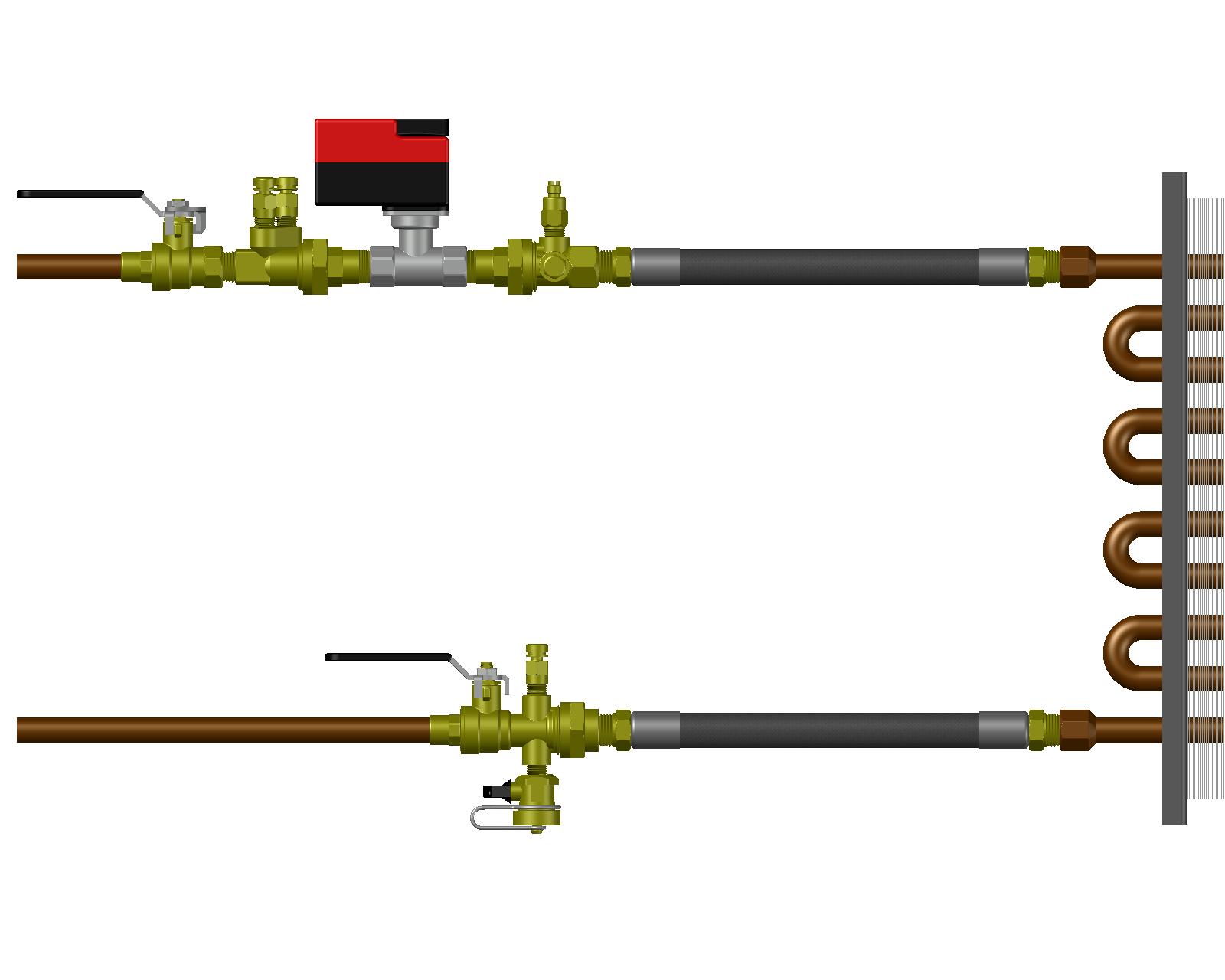

The VNBH kit consists of (1) Model CBV combination ball valve with venturi, (1) Model IBU integral full-port ball valve with union and (2) Model HSS stainless steel braided hoses.

Click Here

BNBH Kit

Image title

The BNBH kit consists of (2) Model IBU integral full-port ball valves with unions and (2) Model HSS stainless steel braided hoses.

Click Here

Manual 3-Way Brass Coil Hookup Kits (1/2″ – 2″)


These manual 3-way balancing kits are a packaged and partially preassembled grouping of components required to complete installation of a terminal unit.”

Submittals

V3I Kit

Image title

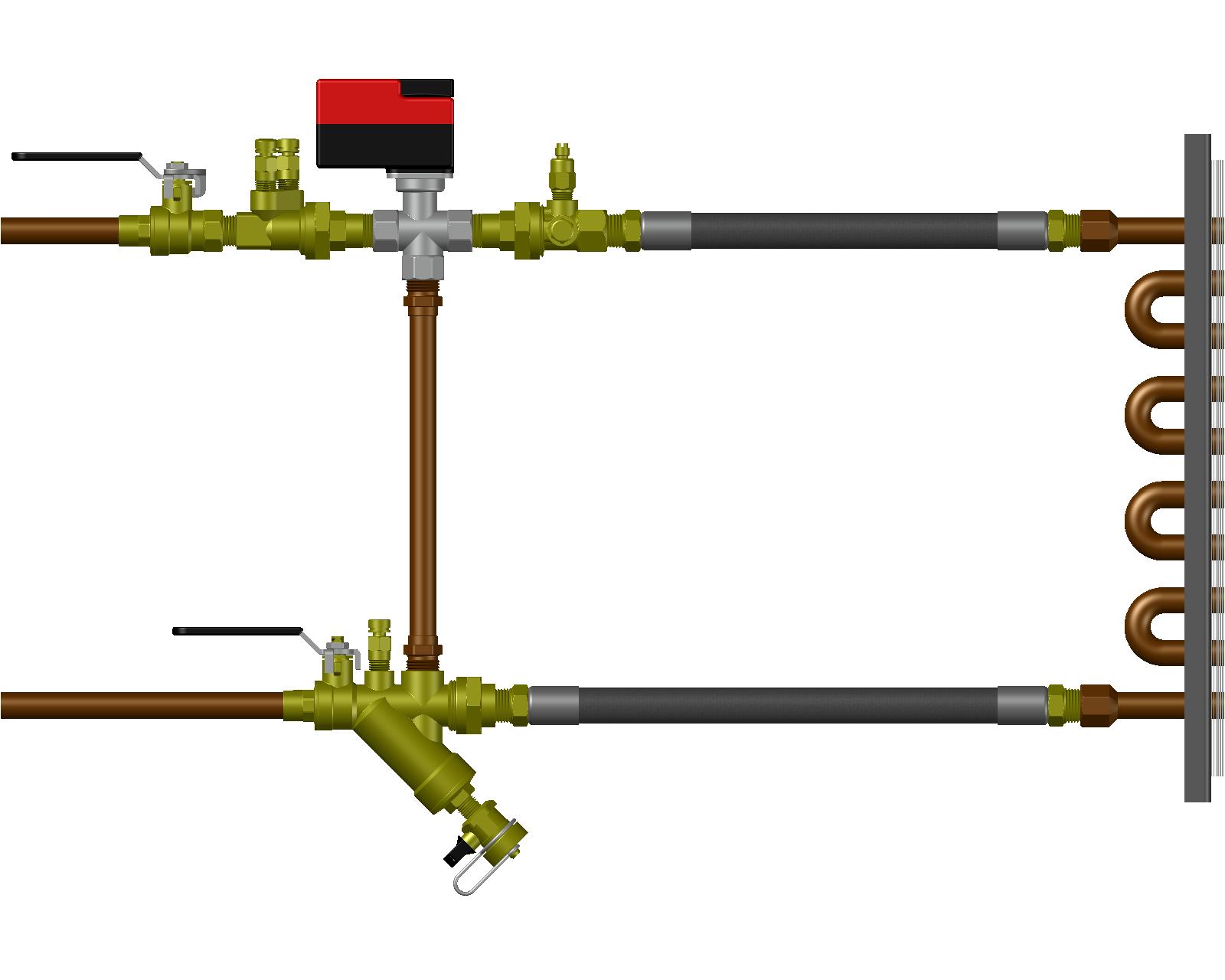

The V3I kit consists of (1) Model CBV combination ball valve with venturi, (1) Model IVY integral full-port ball valve with wye-strainer and (1) Model AU accessory union. Contractor to install bypass piping in plug of IVY strainer.

Click Here

V3IV Kit

Image title

The V3IV kit consists of (2) Model CBV combination ball valves with venturi, (1) Model IVY integral full-port ball valve with wye-strainer and (1) Model AU accessory union. One Model CBV to be installed in bypass line.

Click Here

V3BV Kit

Image title

The V3BV kit consists of (2) Model CBV combination ball valves with venturi, (1) Model IBU integral full-port ball valve with union, and (1) Model AU accessory union. One Model CBV to be installed in the bypass line.

Click Here

V3IB Kit

Image title

The V3IB kit consists of (1) Model CBV combination ball valve with venturi, (1) Model IVY integral full-port ball valve and wye-strainer, (1) Model AU accessory union and (1) Model IBU integral full-port ball valve with union for bypass line.

Click Here

V3BB Kit

Image title

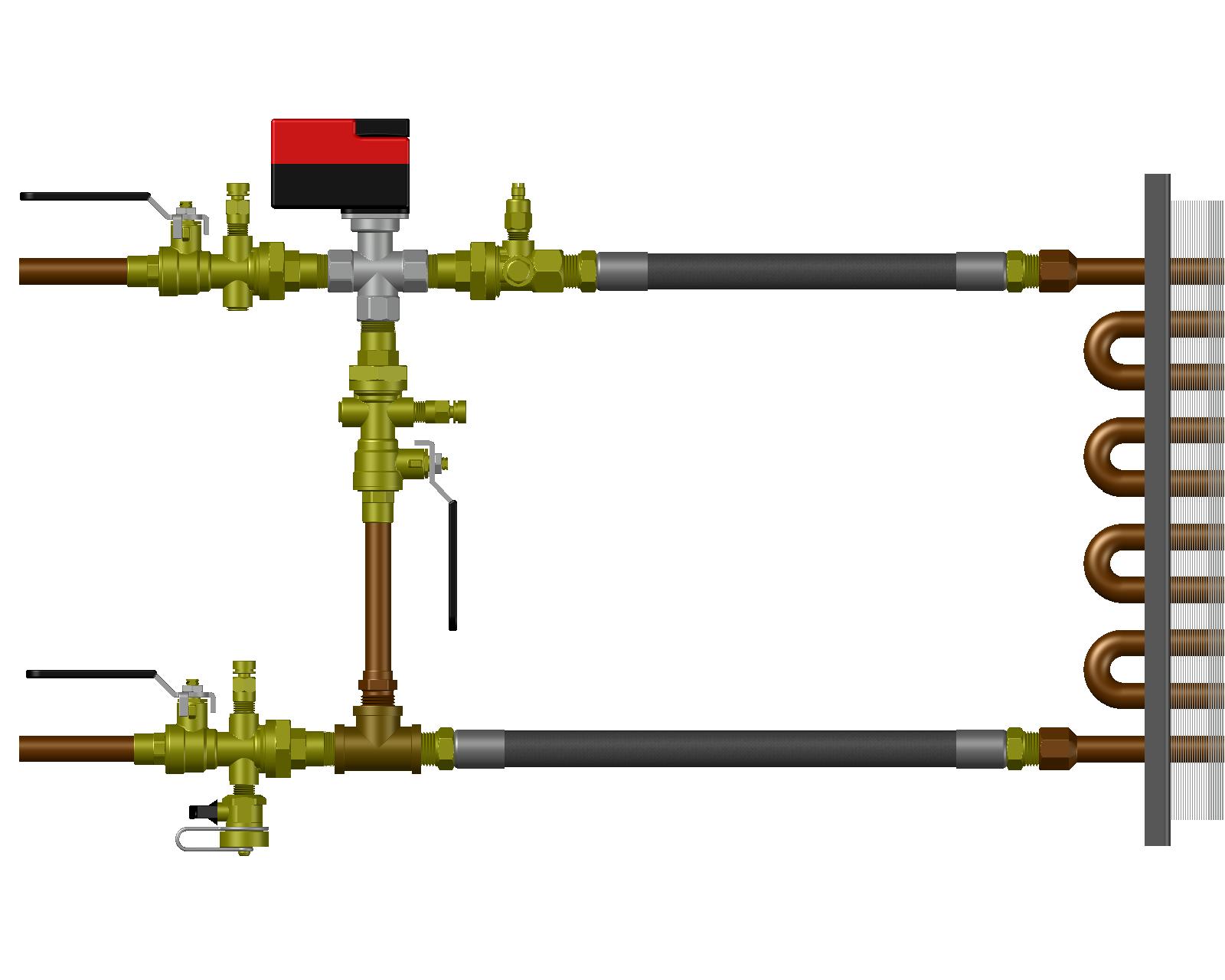

The V3BB kit consists of (1) Model CBV combination ball valve with venturi, (2) Model IBU integral full-port ball valves with union and (1) Model AU accessory union. One Model IBU to be installed in bypass line. Optional Tee fitting shown.

Click Here

B3BB Kit

Image title

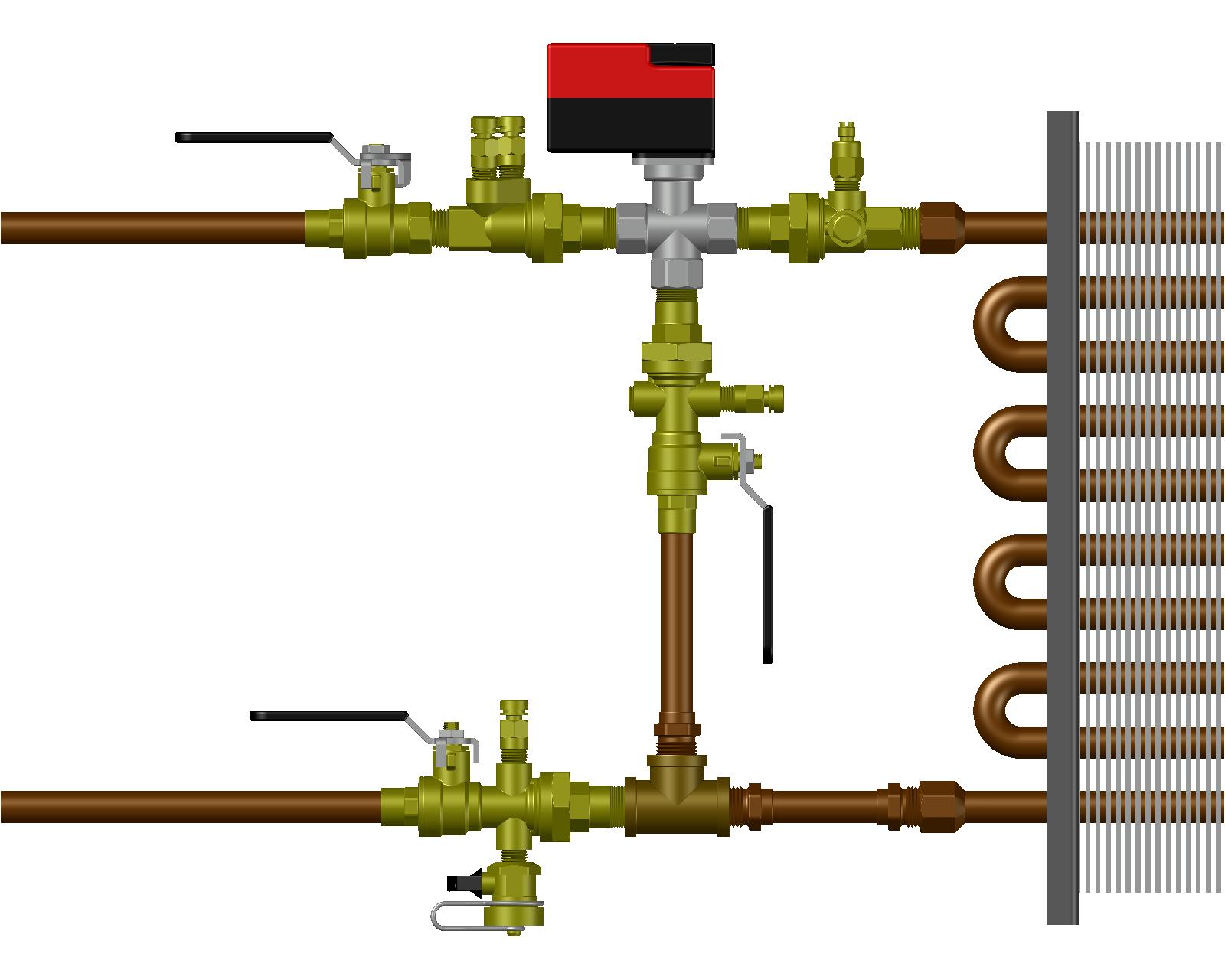

The B3BB kit consists of (3) Model IBU integral full-port ball valves with union and (1) Model AU accessory union. One Model IBU to be mounted in bypass line. Optional Tee shown.

Click Here

V3IH Kit

Image title

The V3IH kit consists of (1) Model CBV combination ball valve with venturi, (1) Model IVY integral full-port ball valve with wye-strainer, (1) Model AU accessory union and (2) Model HSS stainless steel braided hoses. Contractor to install bypass piping in plug of IVY strainer.

Click Here

V3IVH Kit

Image title

The V3IVH kit consists of (2) Model CBV combination ball valves with venturi, (1) Model IVY integral full-port ball valve with wye-strainer, (1) Model AU accessory union and (2) Model HSS stainless steel braided hoses. One Model CBV to be installed in bypass line.

Click Here

V3IBH Kit

Image title

The V3IBH kit consists of (1) Model CBV combination ball valve with venturi, (1) Model IBU integral full-port ball valve with union, (1) Model AU accessory union, (1) Model IBU combination ball valve with venturi for bypass line and (2) Model HSS stainless steel braided hoses.

Click Here

V3BBH Kit

Image title

The V3BBH kit consists of (1) Model CBV combination ball valve with venturi, (2) Model IBU integral full-port ball valves with union, (1) Model AU accessory union and (2) Model HSS stainless steel braided hoses. One Model IBU to be installed in bypass line.

Click Here

B3BBH Kit

Image title

The B3BBH kit consists of (3) Model IBU integral full-port ball valves with union, (1) Model AU accessory union and (2) Model HSS stainless steel braided hoses. One Model IBU to be mounted in bypass line. Optional Tee shown.

Click Here

Manual Heat Pump Hose Kits (1/2″ – 2″)


Submittals

MHKI Kit

Image title

The MHKI kit consists of (1) Model CBV manual flow limiting device, (1) Model IVY integral full-port ball valve with wye-strainer and (2) Model HSS stainless steel braided hoses.

Click Here

MHKB Kit

Image title

The MHKB kit consists of (1) Model CBV manual flow limiting device, (1) Model IBU integral full-port ball valve union and (2) Model HSS stainless steel braided hoses.

Click Here

MHKS Kit

Image title

The MHKS kit consists of (1) Model CBV manual flow limiting device, (1) Model IVS integral full-port ball valve with wye-strainer and (2) Model HSS stainless steel braided hoses.

Click Here
