Brass Coil Hookup Kit Submittals: 1/2" - 2"

Steel Coil Hookup Kit Submittals: 2 1/2" & Up

Ordering Guide - Everything you need to submit orders: PROH Takeoff Template

Coil Kit Naming Guide: BRASS Kit Takeoff

Coil Kit Naming Guide: STEEL Kit Takeoff

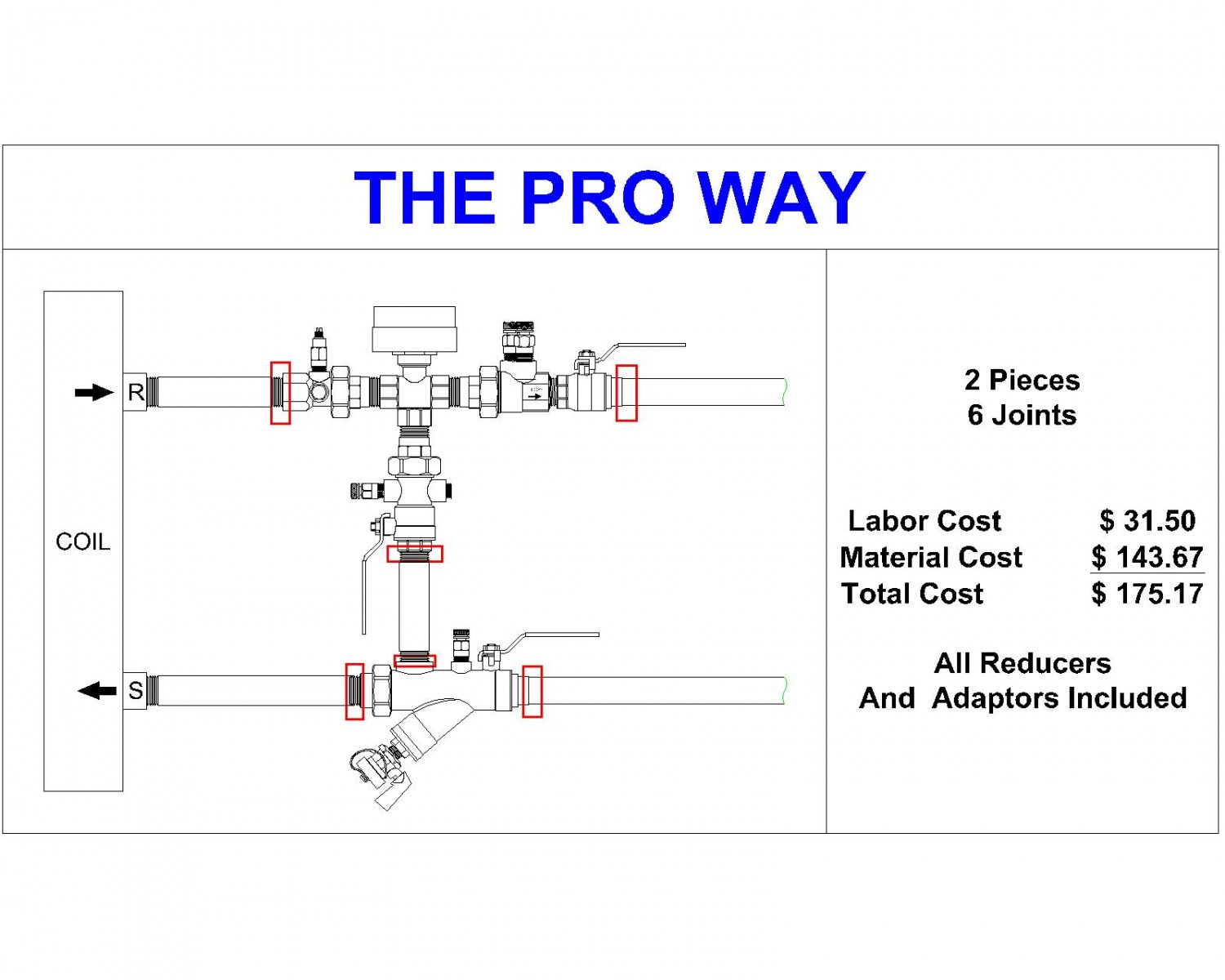

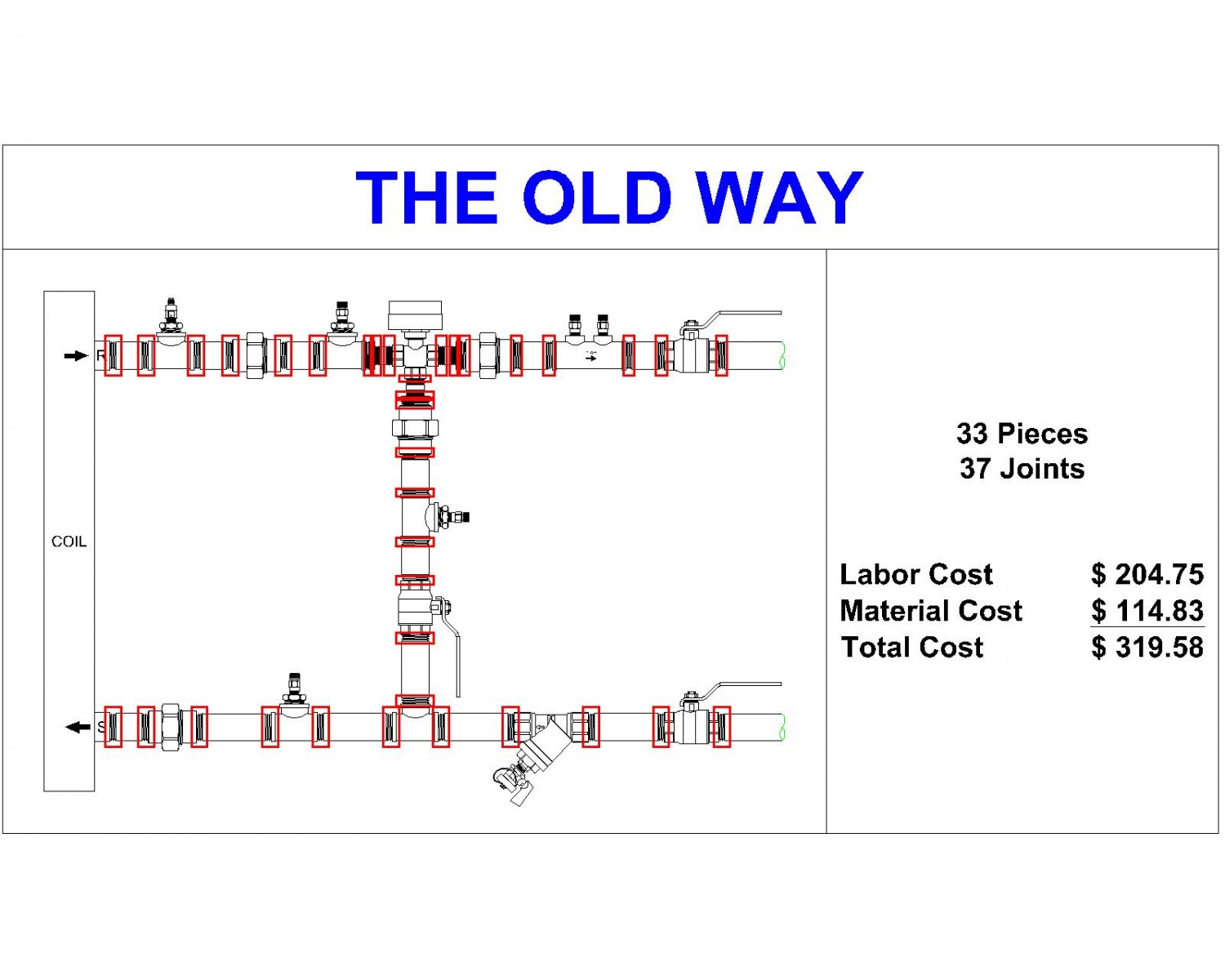

Less is More

Perhaps the most valuable of all offerings from PRO Hydronic Specialties are our coil hookup kits. Coil hookup kits are pre-engineered packaged systems that will save you time, labor and money during your hydronic piping installation. By combining accessories like P/T ports, air vents, drain valves and unions with our manual and or automatic valves, we are able to decrease the number of field-joined connections.

Additionally, we pneumatically test 100% of all coil hookup kits that leave our factory. These measures all help to reduce the risks of leaks, time on the job and overall installation cost. With our tag and bag service, each kit, bag and box, is tagged with the corresponding unit information.



Coil Hook-Up Design Guide:

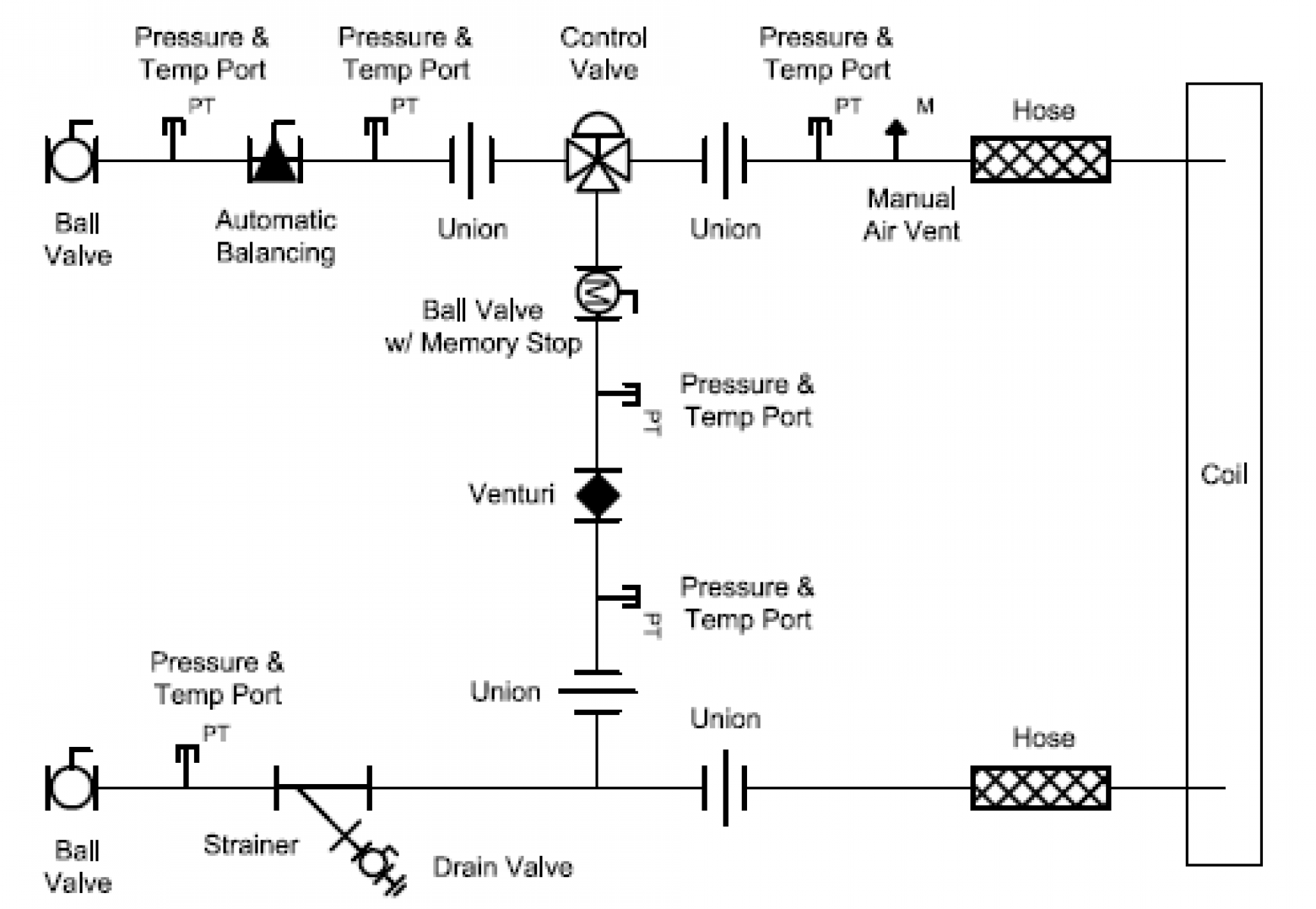

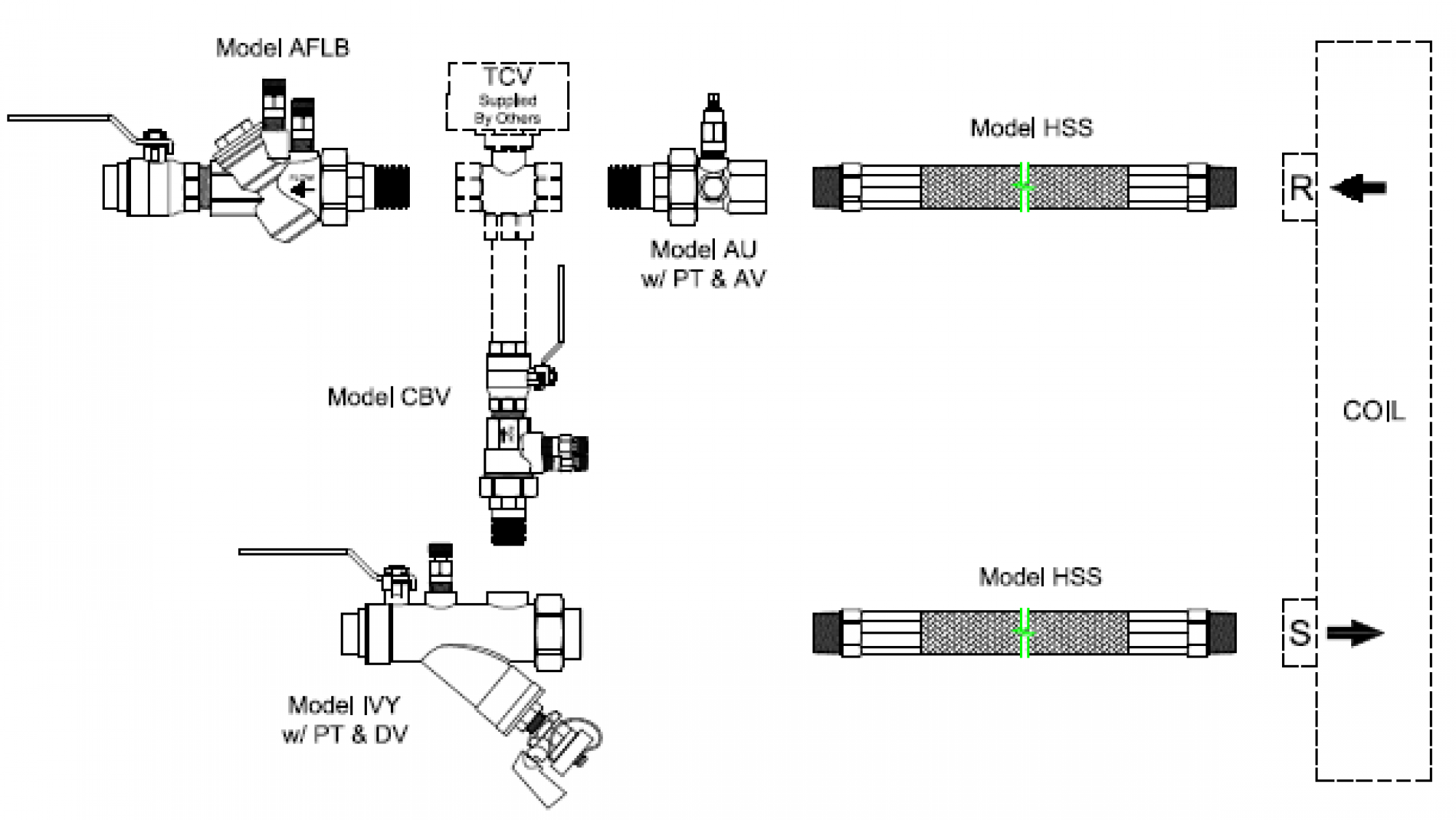

PROH Automatic Balancing 3-Way Coil Hook Up Kit - A3IVH

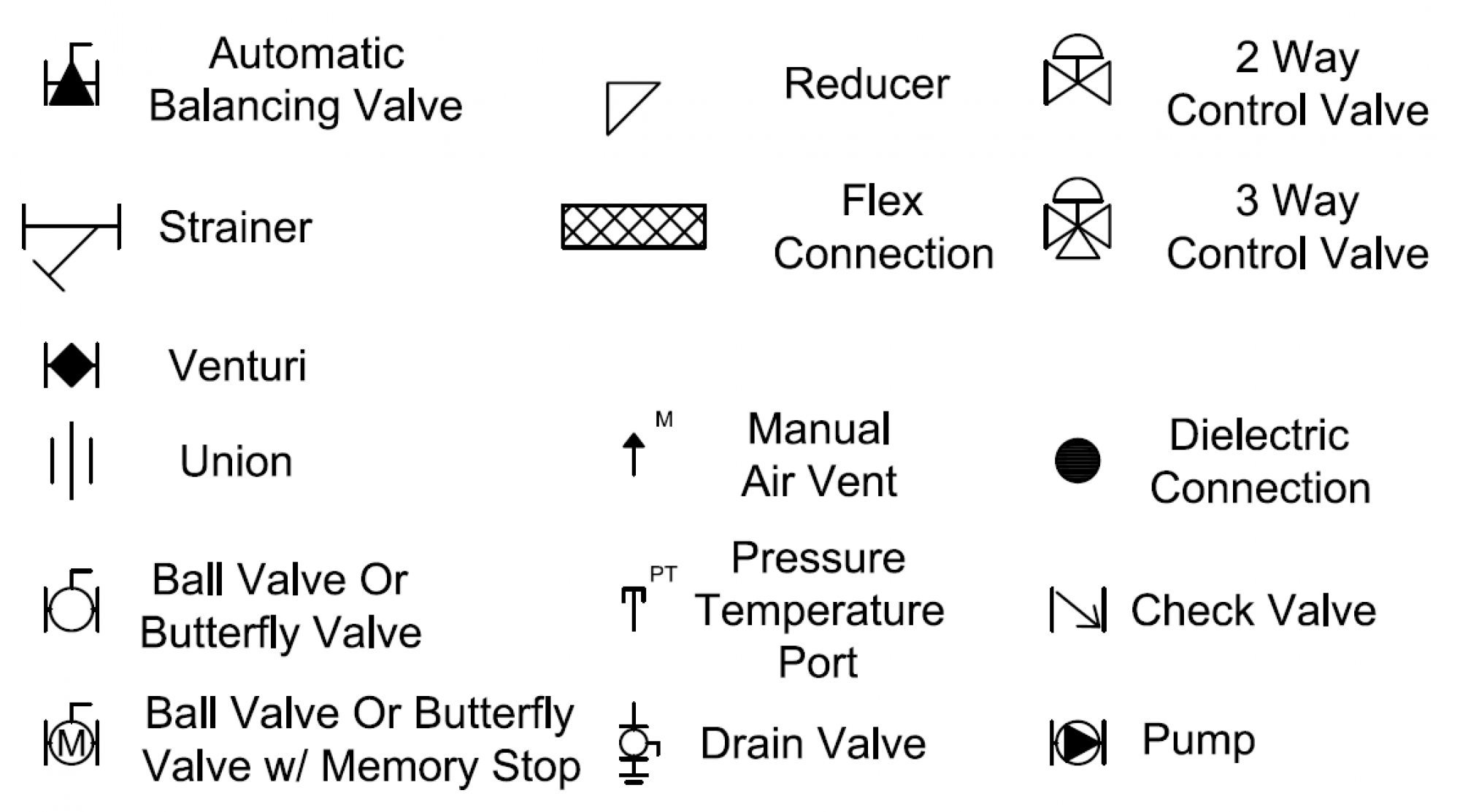

 Some common symbols found among many mechancial HVAC plans.
