Coil Kit Take-Off Guide

Automatic 2-Way Brass Coil Hookup Kits (1/2″ – 2″)
Automatic 3-Way Brass Coil Hookup Kits (1/2″ – 2″)
 Automatic Heat Pump Hose Kits (1/2″ – 2″)

Note: The Model HSS stainless steel braided hoses can be added to any of the 1/2″ to 2″ kits.



Automatic 2-Way Brass Coil Hookup Kits (1/2″ – 2″)


These automatic 2-way balancing kits are a packaged and partially preassembled grouping of components required to complete installation of a terminal unit.

Submittals

ANI Kit


Image title

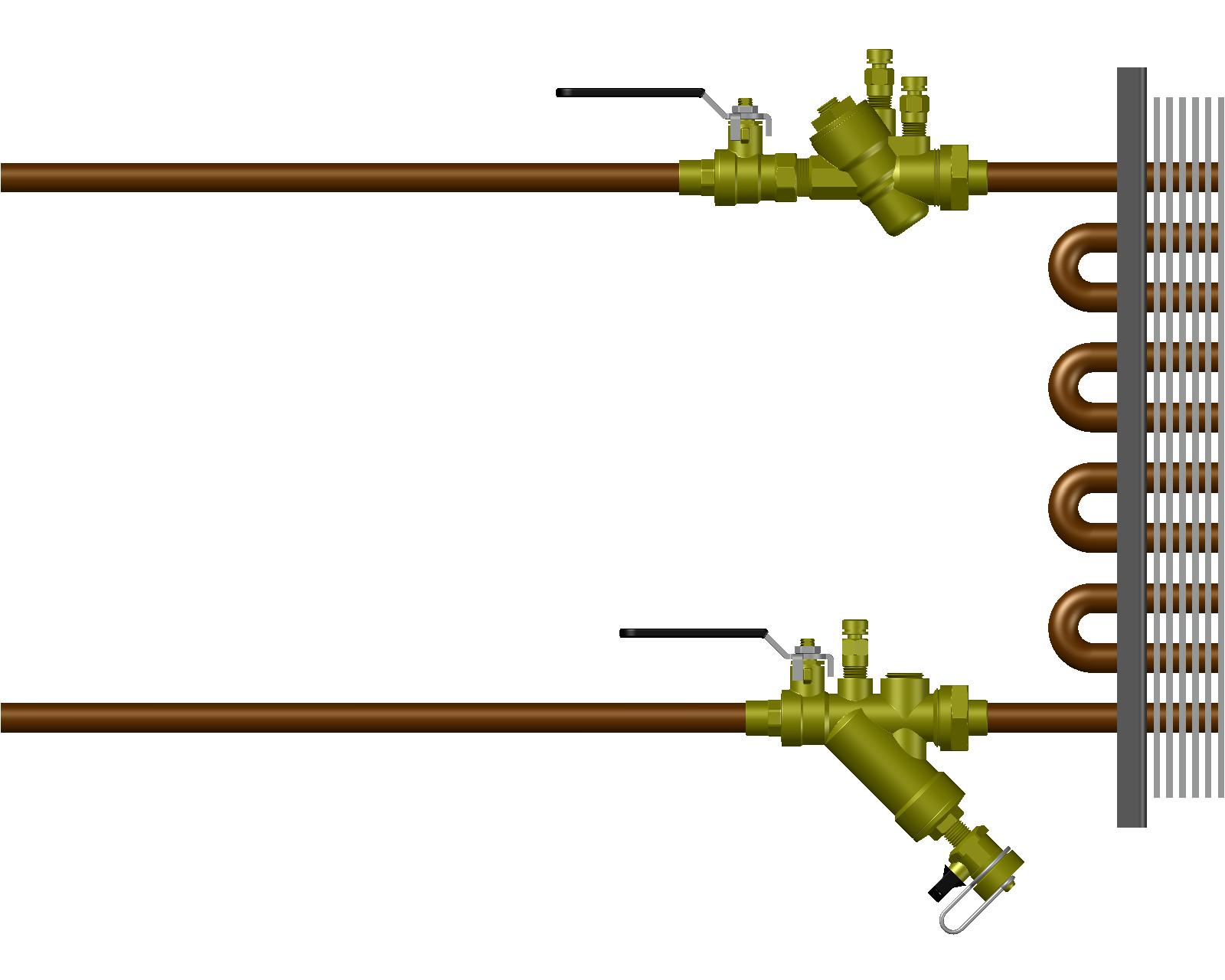

The ANI kit consists of (1) Model AFLB automatic flow limiting device, & (1) Model IVY integral full-port ball valve with wye-strainer.

Click Here

ANB Kit


Image title


The ANB kit consists of (1) Model AFLB automatic flow limiting device, & (1) Model IBU integral full-port ball valve with union.

Click Here

A2I Kit

Image title

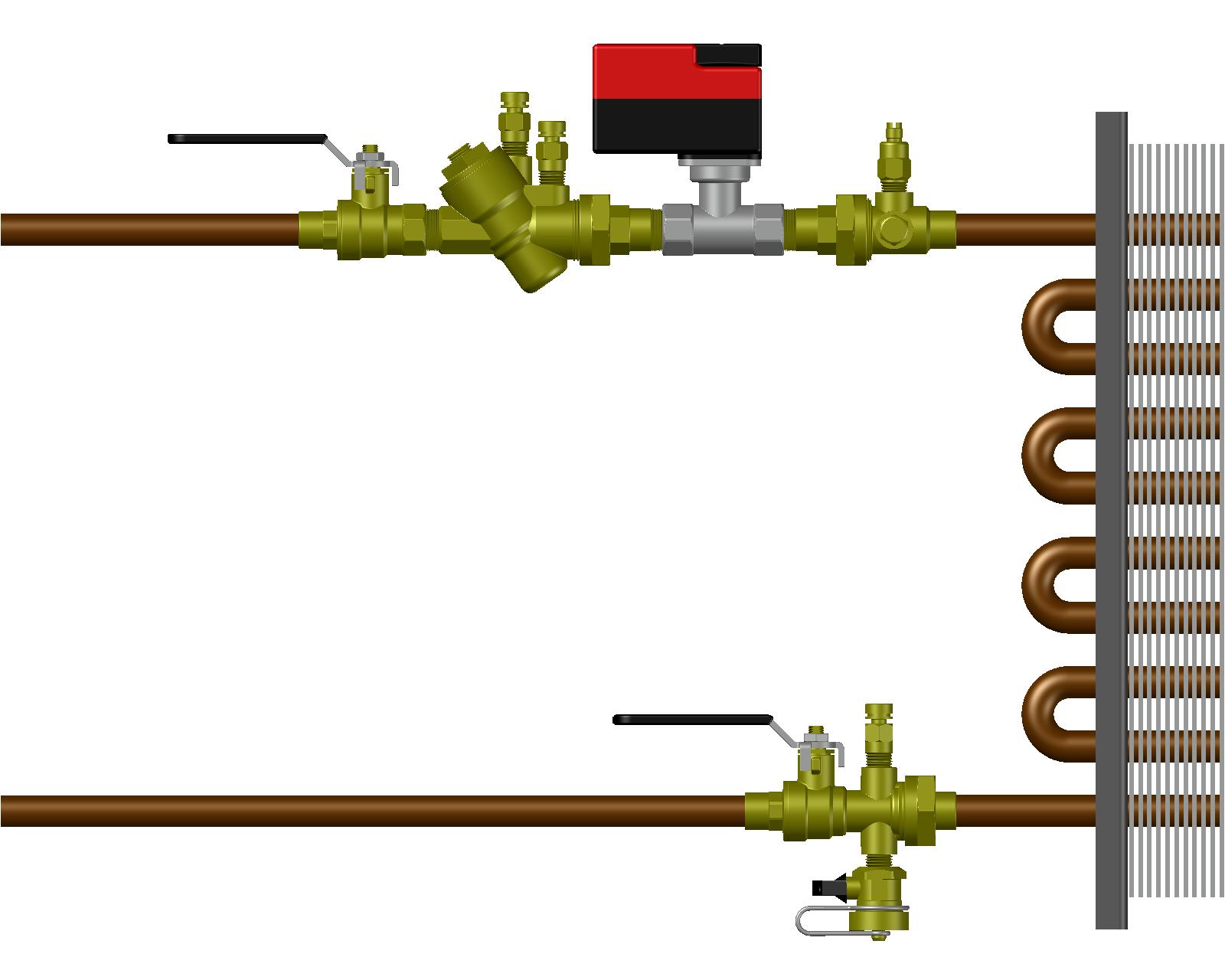

The A2I kit consists of (1) Model AFLB automatic flow limiting device, (1) Model IVY integral full-port ball valve with wye-strainer and (1) Model AU accessory union.

Click Here

A2B Kit


Image title


The A2B kit consists of (1)Model AFLB automatic flow limiting device, (1) Model IBU integral full-port ball valve with union and (1) Model AU accessory union.

Click Here

A2IH Kit

Image title

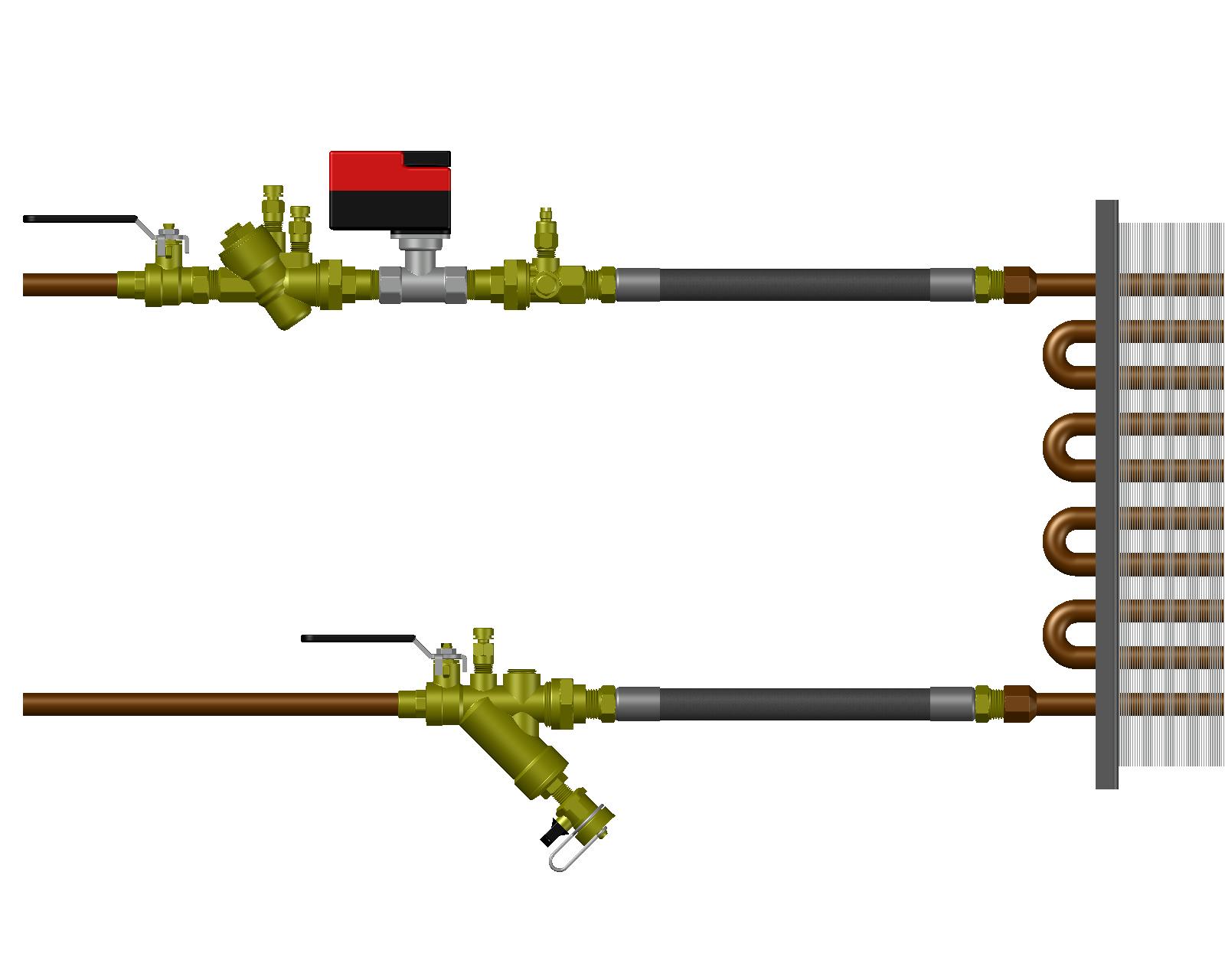

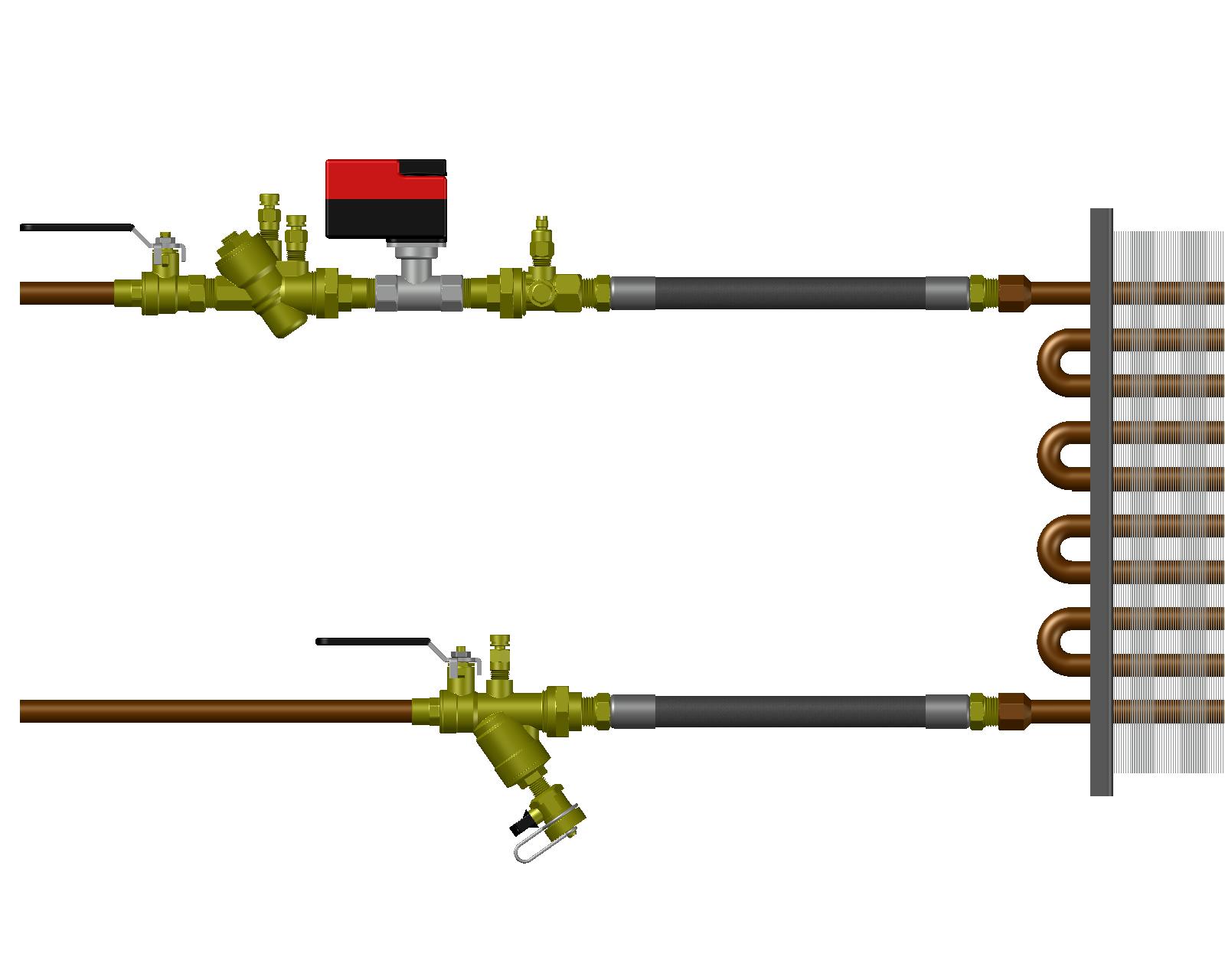

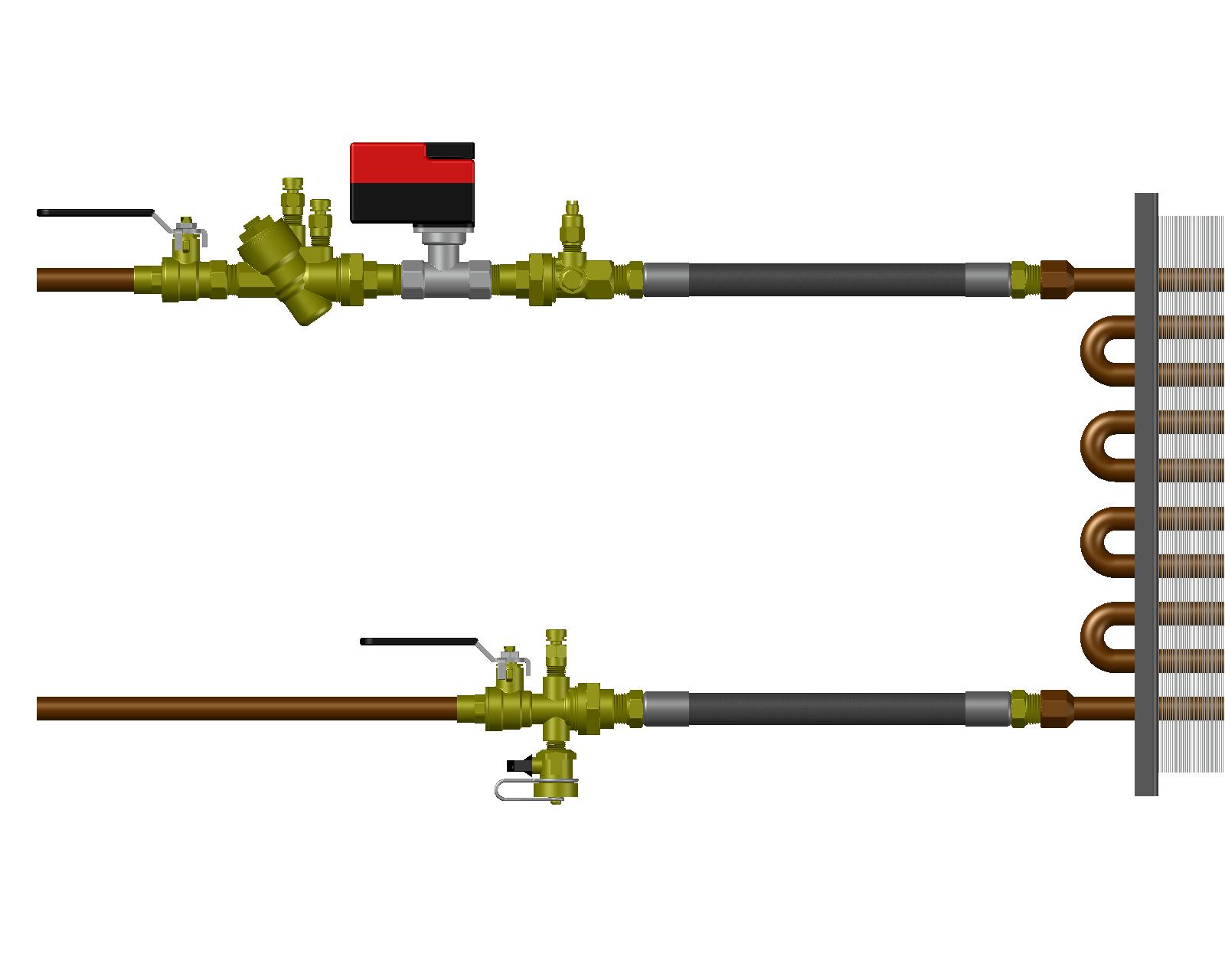

The A2IH kit consists of (1) Model AFLB automatic flow limiting device, (1) Model IVY integral full-port ball valve with wye-strainer, (1) Model AU accessory union and (2) Model HSS stainless steel braided hoses.

Click Here

A2BH Kit


Image title


The A2BH kit consists of (1)Model AFLB automatic flow limiting device, (1) Model IBU integral full-port ball valve with union, (1) Model AU accessory union and (2) Model HSS stainless steel braided hoses.

Click Here

A2S Kit

Image title

The A2S kit consists of (1) Model AFLB automatic flow limiting device, (1) Model IVS integral full-port ball valve with wye-strainer and (1) Model AU accessory union.

Click Here

A2SH Kit

Image title

The A2SH kit consists of (1) Model AFLB automatic flow limiting device, (1) Model IVS integral full-port ball valve with wye-strainer and (1) Model AU accessory union, (2) Model HSS stainless steel braided hoses.

Click Here

ANIH Kit


Image title



The ANIH kit consists of (1) Model AFLB automatic flow limiting device, (1) Model IVY integral full-port ball valve with wye-strainer and (2) Model HSS stainless steel braided hoses.

Click Here

ANBH Kit


Image title


The ANBH kit consists of (1) Model AFLB automatic flow limiting device, (1) Model IVY integral full-port ball valve with wye-strainer and (2) Model HSS stainless steel braided hoses.

Click Here

Automatic 3-Way Brass Coil Hookup Kits (1/2″ – 2″)


These automatic 3-way balancing kits are a packaged and partially preassembled grouping of components required to complete installation of a terminal unit.”

Submittals

A3I Kit


Image title

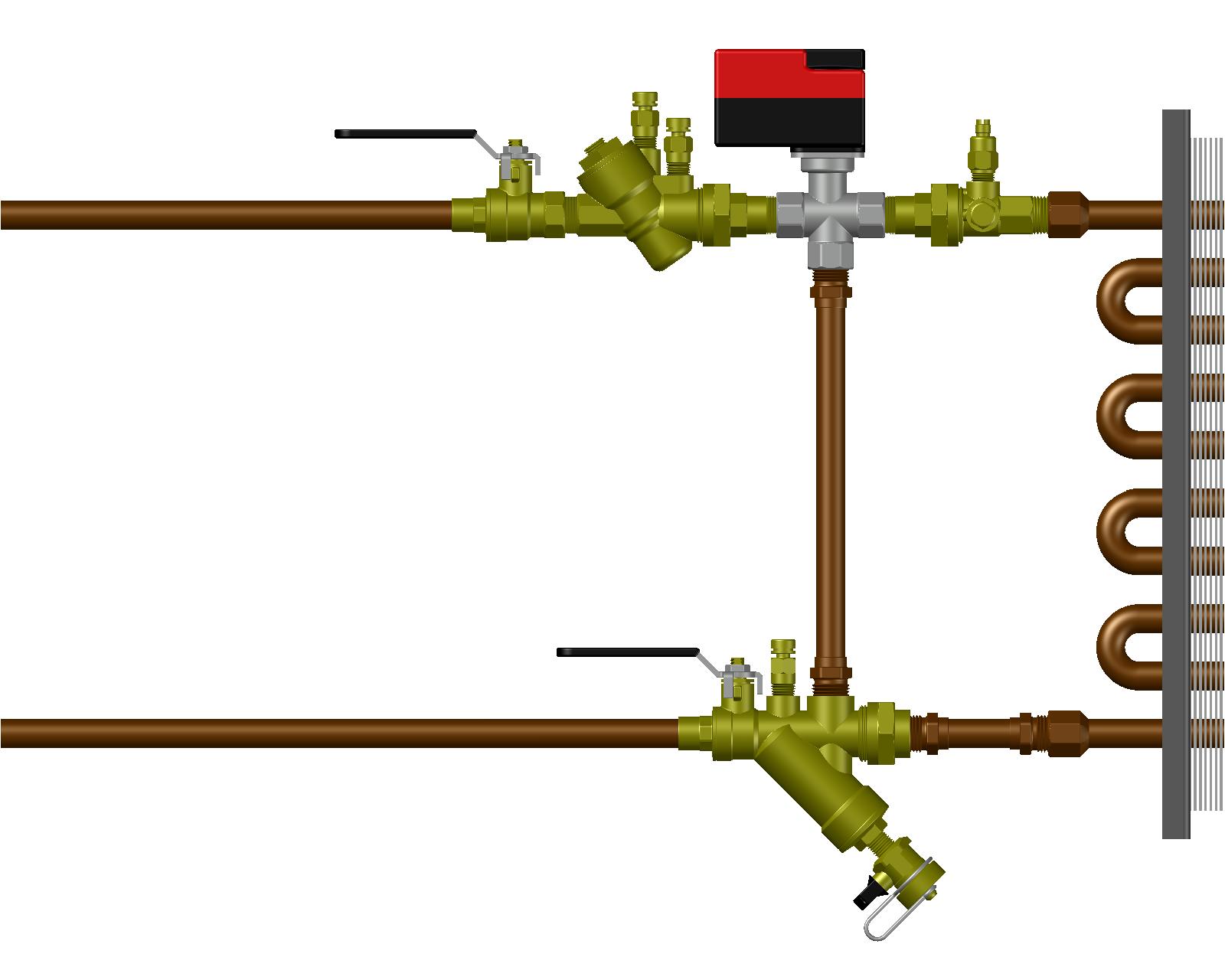

The A3I kit consists of (1) Model AFLB automatic flow limiting device, (1) Model IVY integral full-port ball valve with wye-strainer and (1) Model AU accessory union. Contractor to install bypass piping in plug of IVY strainer.

Click Here

A3IV

Image title

The A3IV kit consists of (1) Model AFLB automatic flow limiting device, (1) Model IVY integral full-port ball valve with wye-strainer, (1) AU accessory union and (1) Model CBV combination ball valve with venturi. Bypass piping by others.

Click Here

A3IB Kit

Image title

The A3IB kit consists of (1) Model AFLB automatic flow limiting device, (1) Model IVY integral full-port ball valve with wye-strainer, (1) Model AU accessory union and (1) Model IBU integral full-port ball valve with union. Bypass piping by others.

Click Here

A3B Kit


Image title


The A3B kit consists of (1) Model AFLB automatic flow limiting device, (1) Model IBU integral full-port ball valve with union and (1) Model AU accessory union. Contractor to install bypass piping. Shown with optional TEE.

Click Here

A3IH Kit


Image title


The A3IH kit consists of (1) Model AFLB automatic flow limiting device, (1) Model IVY integral full-port ball valve with wye-strainer, (1) Model AU accessory union and (2) Model HSS stainless steel braided hoses. Contractor to install bypass piping in plug of IVY strainer.

Click Here

A3IBH Kit

Image title


The A3IBH kit consists of (1) Model AFLB automatic flow limiting device, (1) Model IVY integral full-port ball valve with wye-strainer, (1) Model AU accessory union, (1) Model IBU integral full-port ball valve with union and (2) Model HSS stainless steel braided hoses. Bypass piping by others.

Click Here

A3IVH Kit

Image title

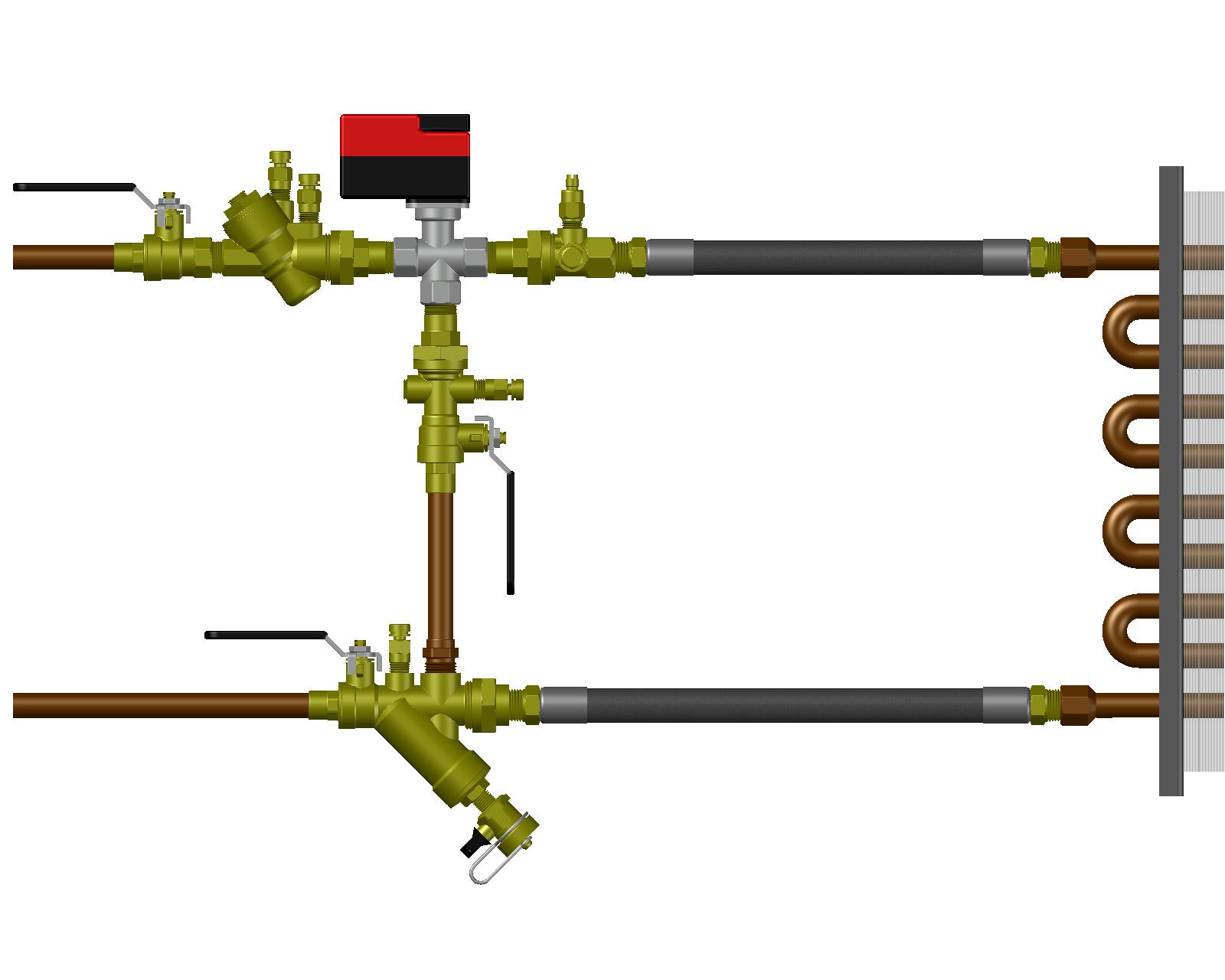

The A3IVH kit consists of (1) Model AFLB automatic flow limiting device, (1) Model IVY integral full-port ball valve with wye-strainer, (1) AU accessory union, (1) Model CBV combination ball valve with venturi and (2) Model HSS stainless steel braided hoses. Bypass piping by others.

Click Here

A3BH Kit

Image title

The A3BH kit consists of (1) Model AFLB automatic flow limiting device, (1) Model IBU integral full-port ball valve with union, (1) Model AU accessory union and (2) Model HSS stainless steel hoses. Contractor to install bypass piping. Shown with optional TEE.

Click Here

Automatic Heat Pump Hose Kits (1/2″ – 2″)

Submittals

AHKI Kit

Image title

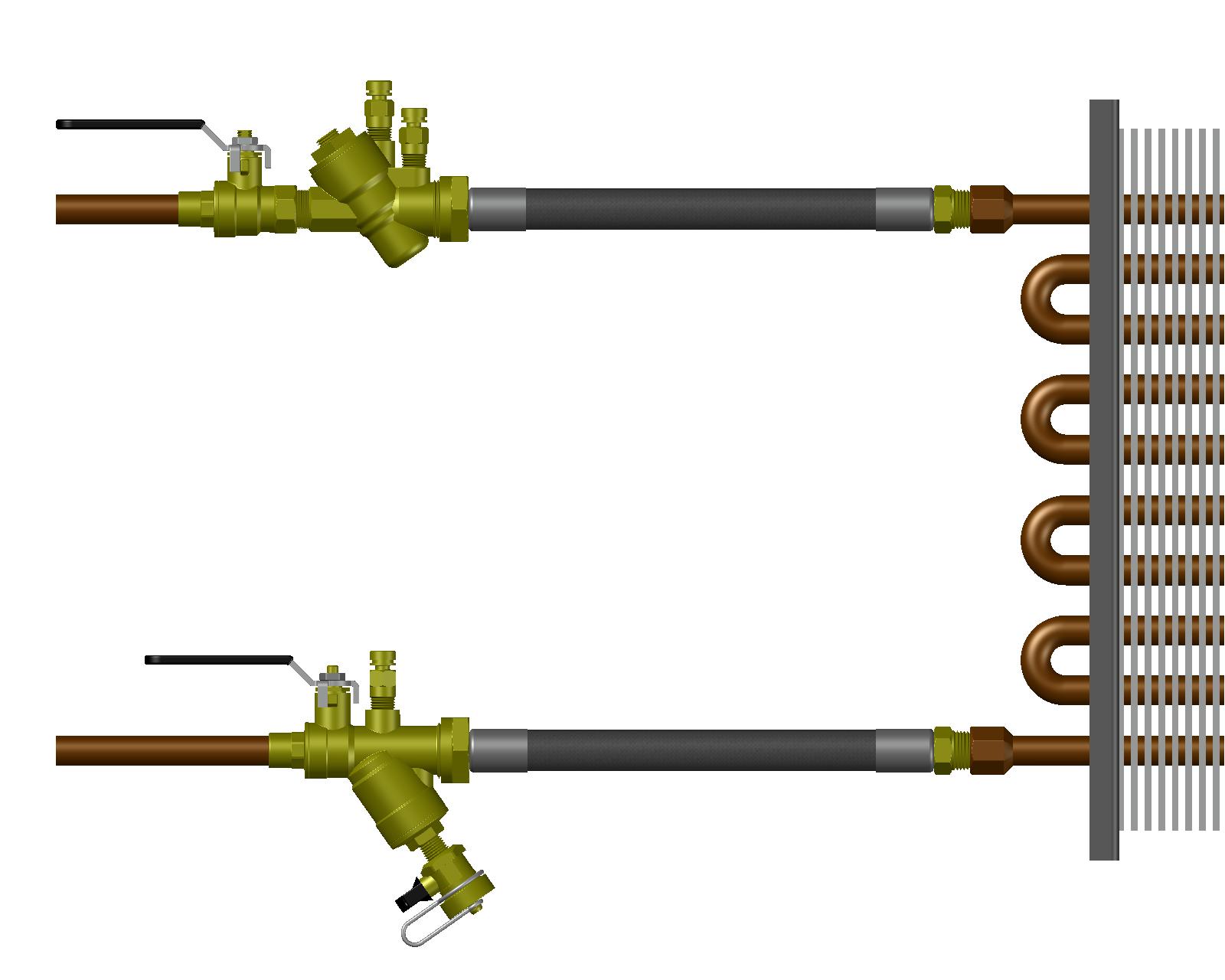

The AHKI kit consists of (1) Model AFLB automatic flow limiting device, (1) Model IVY integral full-port ball valve with wye-strainer and (2) Model HSS stainless steel braided hoses.

Click Here

AHKB Kit

Image title

The AHKB kit consists of (1) Model AFLB automatic flow limiting device, (1) Model IBU integral full-port ball valve union and (2) Model HSS stainless steel braided hoses.

Click Here

AHKS Kit

Image title

The AHKS kit consists of (1) Model AFLB automatic flow limiting device, (1) Model IVS integral full-port ball valve with wye-strainer and (2) Model HSS stainless steel braided hoses.

Click Here
